Esco Skidding - Snubber Parts
Click on the assembly part numbers to view a PDF version
| Item No. | QTY. | Part No. | Desciption |
|---|---|---|---|

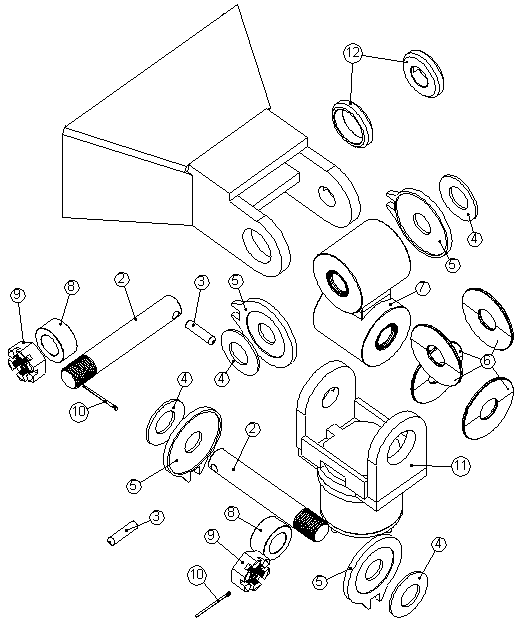

| N/A | 9E0040 | Skid Grapple Parts Assembly | |
| 2 | 2 | 9EP530 | 6" Snubber Pin |
| 3 | 2 | FPD067 | 3/4" x 3" Dowel Pin |
| 4 | 4 | 9E0006 | Thick Spring (6mm/.366" thick) Belleville Washer |
| 5 | 4 | 9ES521 | 6" Disk Retainer |
| 6 | 4 | 9ES004 | Fabric Lining Set (2 pc.) |
| 7 | 1 | 9ES000 | 6" Snubber Assembly |
| 8 | 2 | 9ES511 | Tension Spacer |
| 9 | 2 | FNF80C | 2" NF Castle Nut |
| 10 | 2 | FPC061 | Cotter Pin, 3/16 x 3-1/2" |
| 11 | 1 | 9EY000 | Pivot Assembly - Complete |
| 12 | 1 | 9E0016 | Esco Boom End Repair Kit |

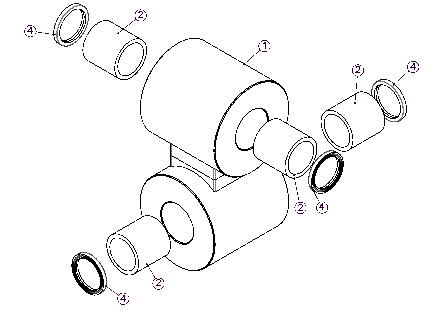

6" Snubber Assembly
| Item No. | QTY. | Part No. | Desciption |
|---|---|---|---|
| 1 | 1 | 9ES007 | 6" Snubber Weldment |
| 2 | 4 | 9ES503 | Snubber Bushing |
| 4 | 4 | SS0028 | 2" x 2-1/2" x 1/4" Rod Scraper |
