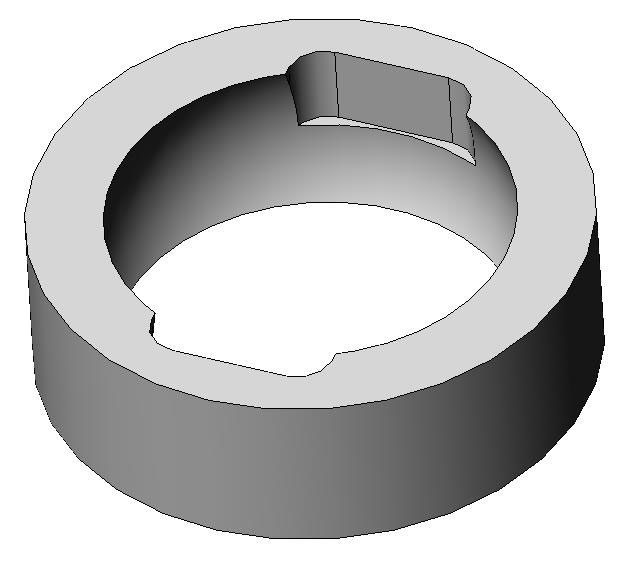

Bearing Housings
When inexpensive cast iron pillow blocks or flange bearings will not fit, or break from shock loads, these steel weld on housings may solve your problems. We developed these for material handling equipment that had limited space for mounting and mobile equipment where the cast iron housings broke. The quick ship sizes are listed below, but we can make the weld on housings for any spherical O.D. wide inner ring bearing. For more information please call us at 360-264-2141.
Quick Ship Sizes
| Bearing Size | Bearing Shaft Sizes Available | Housing Part No. |
|---|---|---|
| 203 | 1/2", 5/8", 11/16", and 17mm | BSH001 |
| 204 | 3/4" and 20mm | BSH003 |
| 205 | 13/16", 7/8", 15/16", 1", and 25mm | BSH004 |
| 206 | 1-1/16", 1-1/8", 1-3/16", 1-7/16", and 30mm | BSH006 |
| 207 | 1-1/4", 1-5/16", 1-3/8", 1-7/16", and 35mm | BSH007 |
| 211 | 2", 2-1/8", 2-3/16", and 55mm | BSH011 |
