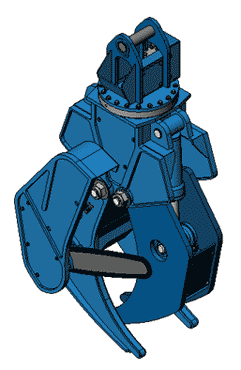

Log Grapple with Chain Saw
Our log grapples with built in cutoff saws can cut logs up to 24” in diameter. The feed modulating valve makes cutting multiple pieces possible by adjusting the bar feed speed, not the pressure. The cutoff saw grapple uses 6,000 PSI hydraulic cylinders, a 3/4” pitch chain saw, and gear type bar oiling pump.
| Model | Max. Opening | Min. Opening | Shovel Logging Use | Log Deck Use |
|---|---|---|---|---|
| LD36 | 36" | 3" | No | Yes, at 3,000 psi |
| LD48 | 48" | 4" | No | Yes, at 3,000 psi |
| LCG46 | 46" | 3" | Yes, on machines under 60,000 lbs | Yes, at 5,000 psi |
| LCG54 | 54" | 3" | Yes, on machines under 85,000 lbs | Yes, at 5,000 psi |
| LCG60 | 60" | 4" | Yes, on machines under 120,000 lbs | Yes, at 5,000 psi |
