Measuring Tools
These groove measuring attachments are design to clamp to electronic caliper jaws to provide a shape and reach for measuring seal and snap ring grooves of many sizes, depths and widths. The 1TI026A and 1TI028A attachments can be used for measuring OD grooves .125” / 3.2mm wide and wider. We use these with Mitutoyo IP68 electronic caliper in our shop so you can set 0 and then measure with a micrometer to get the actual diameter. You will have to develop a feel and rock the tip in the groove to be able to measure ±.001” / .025mm accuracy.

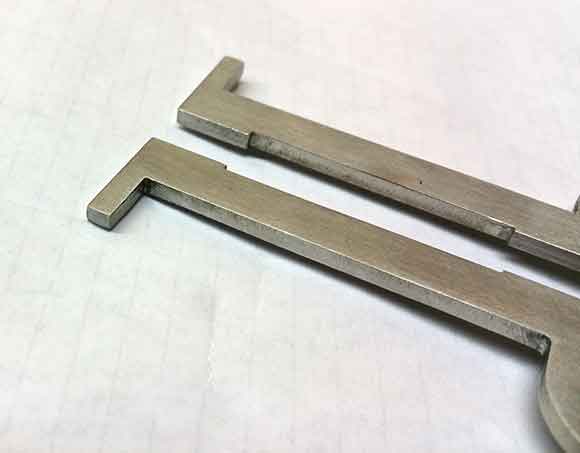

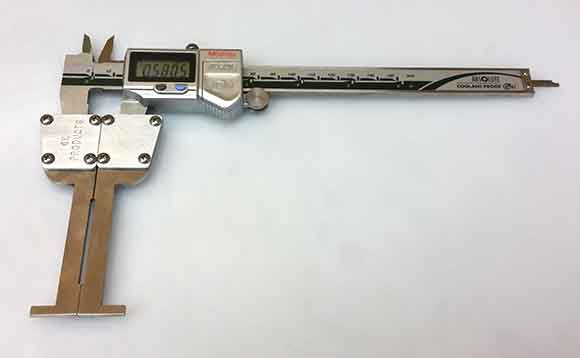

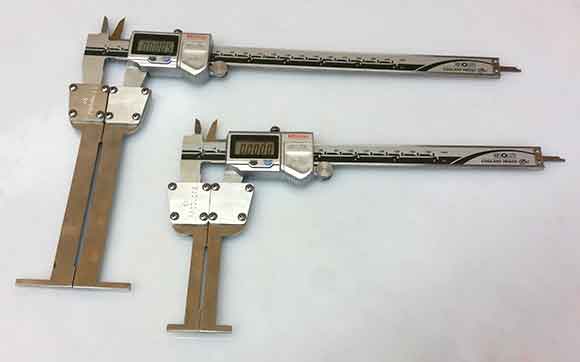

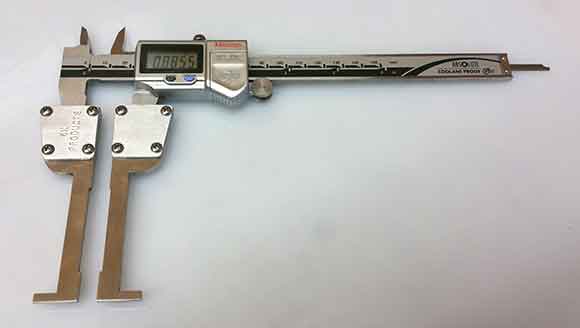

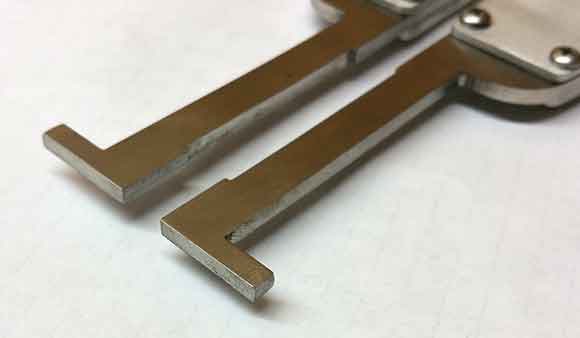

Please click on a picture below for a larger view

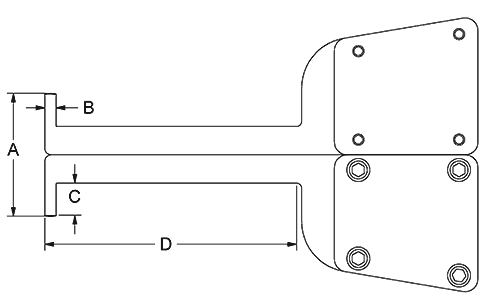

Sizing table
| Part No. | Description | A - Min. Bore Size | B - Min. Groove Width | C - Max. Groove Depth | D - Max. Groove Location Depth |
|---|---|---|---|---|---|
| 1TI021A | 1A Caliper Jaw Set | .375" / 10mm | .028" / .71mm | .065" / 1.65mm | .260" / 6.6mm |
| 1TI023A | 1B Caliper Jaw Set | .750" / 19mm | .080" / 2.0mm | .190" / 4.82mm | 1.50" / 38.1mm |
| 1TI024A | 1C Caliper Jaw Set | .980" / 25mm | .098" / 2.5mm | .250" / 6.35mm | 2.0" / 50.8mm |
| 1TI025A | 1D Caliper Jaw Set | 1.625" / 41.3mm | .110" / 2.8mm | .395" / 10mm | 3" / 76.2mm |
| 1TI026A | 1E Caliper Jaw Set | 2.180" / 55.3mm | .160" / 4mm | .512" / 13mm | 3.25" / 82.5mm |
| 1TI028A | 1F Caliper Jaw Set | 2.625" / 66.7mm | .160" / 4mm | .750" / 19mm | 4.140" / 105.5mm |
