Splined Sleeves
We offer internal splined sleeves for common hydraulic pump and motor drive connection. These sleeves can be used for repairing worn drives or used in new products. There are 4140 Heat treated models and case hardened 8620 models with the option of standard Flat Root Side Fit sleeves or for high load applications Full Fillet Side Fit sleeves.

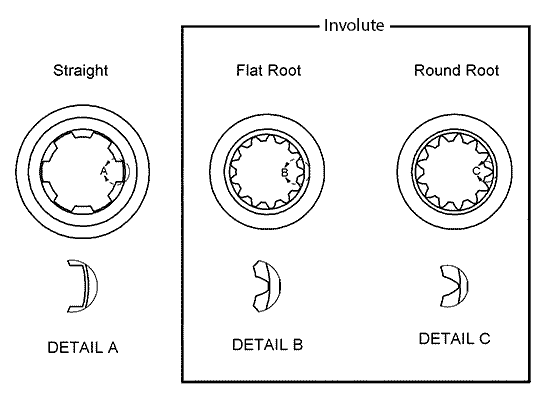

Involute Internal Splined Splined Sleeves
| Description | Spline Form | Part No. |
|---|---|---|
| SAE A-9T 16/32-30° pa Sleeve, 4140 HT | Round Root | G6SI01 |
| 11T 16/32-30° pa Sleeve, 4140 HT | Round Root | G6SI02 |
| SAE B - 13T 16/32-30° pa Sleeve, 4140 HT | Round Root | G6SI03 |
| SAE C - 14T 12/24-30° pa Sleeve, 4140 HT | Round Root | G6SI04 |
| SAE A - 9T 16/32-30° pa Sleeve, 4140 HT | Flat Root | G6SI06 |
| 11T 16/32-30° pa Sleeve, 4140 HT | Flat Root | G6SI07 |
| SAE B - 13T 16/32-30° pa Sleeve, 4140 HT | Flat Root | G6SI08 |
| SAE C - 14T 12/24-30° pa Sleeve, 4140 HT | Flat Root | G6SI09 |
| SAE A - 9T 16/32-30° pa Case Hardened Sleeve | Round Root | G6SIC1 |
| 11T 16/32-30° pa Case Hardened Sleeve | Round Root | G6SIC2 |
| SAE B - 13T 16/32-30° pa Case Hardened Sleeve | Round Root | G6SIC3 |
| SAE C - 14T 12/24-30° pa Case Hardened Sleeve | Round Root | G6SIC4 |
| 2000 Series Charlynn Female Case Hardened Sleeve | Charlynn Special | G6SIC5 |
| SAE A - 9T 16/32-30° pa Case Hardened Sleeve | Flat Root | G6SIC6 |
| 11T 16/32-30° pa Case Hardened Sleeve | Flat Root | G6SIC7 |
| SAE B - 13T 16/32-30° pa Case Hardened Sleeve | Flat Root | G6SIC8 |
| SAE C - 14T 12/24-30° pa Case Hardened Sleeve | Flat Root | G6SIC9 |
| SAE B-B - 15T 16/32-30° pa Case Hardened Internal Splined Sleeve | Flat Root | G6SIC10 |
