The Connect & Cut Saw System
Click here to return to the Main Saw page

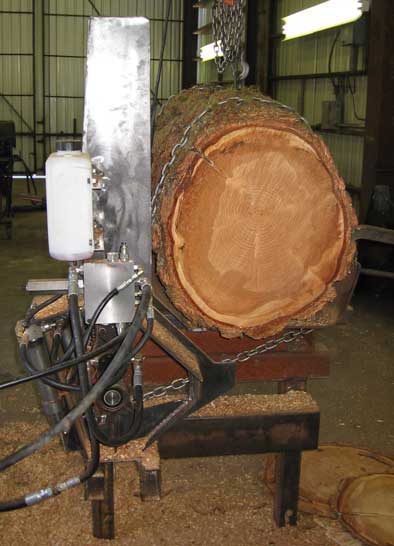

Motor side of a 14G Connect and Cut. Click for a larger view.

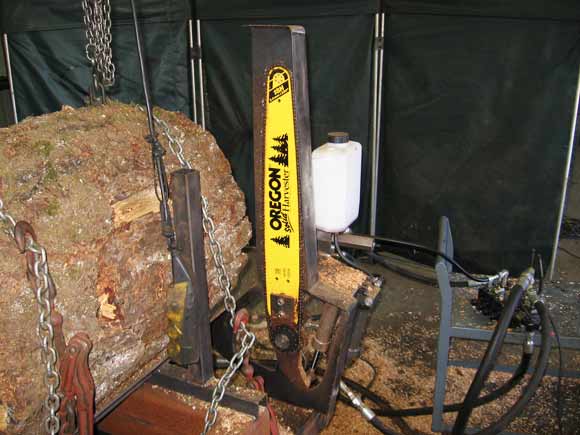

Bar side of a 14G Connect and Cut. Click for a larger view.The Connect and Cut Saw Systems feature a manifold with a feed modulating valve to control a hydraulic cylinder for excellent cutting feed control, bar oil pump, bar oil tank, frame with ball bearing pivot, bar plate with screw adjustment, gear type hydraulic motor, drive sprocket with bushing and a partial guard. We offer 24” and 36” cut diameter bar and chain combinations. This saw requires a directional control valve for cut and retract.
To view a saw manual please click on a part number. To see a component list please click on a model number.
| Part No. | Model No. | Description |
|---|---|---|
| DH0601 | 14G24 | Input flow of 13-15 gpm, 24" cut |
| DH0606 | 14G36 | Input flow of 13-15 gpm, 36" cut |
| DH0602 | 17G24 | Input flow of 16-18 gpm, 24" cut |
| DH0607 | 17G36 | Input flow of 16-18 gpm, 36" cut |
| DH0603 | 20G24 | Input flow of 19-21 gpm, 24" cut |
| DH0608 | 20G36 | Input flow of 19-21 gpm, 36" cut |
| DH0604 | 25G24 | Input flow of 24-26 gpm, 24" cut |
| DH0609 | 25G36 | Input flow of 24-26 gpm, 36 cut |
| DH0605 | 30G24 | Input flow of 29-31 gpm, 24" cut |
| DH0610 | 30G36 | Input flow of 29-31 gpm, 36" cut |
