Shaper Cutting Inserts and Insert Shanks
We are proud to offer a new product for machining splines and keyways in CNC machine tools. Initially common internal spline, external spline, and keyway cutting inserts and insert shanks for blind hole or through hole applications are available. We can make other sizes and shapes not listed on request. All inserts come with mounting screws.
To watch this video though YouTube please click here
All shaper cutting insert shanks are case hardened steel for strength, wear resistance and vibration control. Some inserts have a recommended shank, but for the others the shank to use is application specific, based on the minor diameter and lenth of cut.
We will provide CNC program information for each specific insert on request. A sample Haas VMC program for cutting the SAE B Flat Root spline in 4140 HT as a .txt file is here.
Styles
Custom Inserts
External Spline Cutting
Other Cutting Shapes
Shaper Cutting Holders
Custom Inserts
For new insert sizes cut from blanks please use the following pricing. The following pricing is for a single insert.
Insert Blank | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|
TIS010 - Size 1, 0.192" wide x 0.126" max feature height | $68.96 ea | $56.16 ea | $50.96 ea |
TIS018 - Size 1w, 0.3" wide x 0.126" max feature height | $68.96 ea | $56.16 ea | $50.96 ea |
TIS028 - Size 2, 0.32" wide x 0.31" max feature height | $94.75 ea | $81.95 ea | $75.35 ea |
TIS029 - Size 2w, 0.4" wide x 0.31" max feature height | $94.75 ea | $81.95 ea | $75.35 ea |
TIS042 - Size 2xw, 0.635" wide x 0.48" max feature height | $113.07 ea | $100.27 ea | $93.67 ea |
TIS063 - Size 3, 0.8" wide x 0.8" max feature height | pricing on request |
Click here to go to top of page
Straight Internal Spline Inserts - Inch
Descripton | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
1" - 6 Straight Side Internal Spline Insert | 1w | TIS002 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Flat Root Internal Spline Inserts - Inch
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
SAE A - 9T 16/32-30° pa Flat Root Side Fit Internal Spline Insert (recommended with shank T6S001) | 1 | TIS020 | $68.96 ea | $56.16 ea | $50.96 ea |
11T 16/32-30° pa Flat Root Side Fit Internal Spline Insert (recommended with shank T6S006) | 1 | TIS021 | $68.96 ea | $56.16 ea | $50.96 ea |
SAE B - 13T 16/32-30° pa Flat Root Side Fit Internal Spline Insert (recommended with shank T6S002) | 1 | TIS022 | $68.96 ea | $56.16 ea | $50.96 ea |
SAE B-B - 15T 16/32-30° pa Flat Root Side Fit Internal Spline Insert | 1 | TIS035 | $68.96 ea | $56.16 ea | $50.96 ea |
SAE C - 14T 12/24-30° pa Flat Root Side Fit Internal Spline Insert (recommended with shank T6S003) | 1 | TIS023 | $68.96 ea | $56.16 ea | $50.96 ea |
22T x 30° pa x 16/32 Pitch Flat Root Side Fit Internal Spline Insert | 1 | TIS024 | $68.96 ea | $56.16 ea | $50.96 ea |
27T x 30° pa x 16/32 Pitch Flat Root Side Fit Internal Spline Insert | 1 | TIS025 | $68.96 ea | $56.16 ea | $50.96 ea |
31T x 30° pa x 16/32 Pitch Flat Root Side Fit Internal Spline Insert | 1 | TIS026 | $68.96 ea | $56.16 ea | $50.96 ea |
29T x 30° pa x 10/20 Pitch Flat Root Side Fit Internal Spline Insert | 2 | TIS027 | $94.75 ea | $81.95 ea | $75.35 ea |
SAE D, E - 13T 8/16-30° pa Flat Root Side Fit Internal Spline Insert | 2 | TIS030 | $94.75 ea | $81.95 ea | $75.35 ea |
SAE F - 15T 8/16-30° pa Flat Root Side Fit Internal Spline Insert | 2 | TIS031 | $94.75 ea | $81.95 ea | $75.35 ea |
21T 16/32-30° pa Flat Root Side Fit Internal Spline Insert | 1 | TIS036 | $68.96 ea | $56.16 ea | $50.96 ea |
17T 12/24-30° pa Flat Root Side Fit Internal Spline Insert | 1 | TIS037 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Other Internal Spline Inserts - Inch
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
2000 Series Charlynn Female Spline Insert (recommended with shank T6S003) | 1 | TIS007 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Flat Root External Spline Inserts - Inch
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
SAE A - 9T 16/32-30° pa Flat Root Side Fit External Spline Insert | 1 | TIS057 | $68.96 ea | $56.16 ea | $50.96 ea |
SAE B - 13T 16/32-30° pa Flat Root Side Fit External Spline Insert | 1 | TIS058 | $68.96 ea | $56.16 ea | $50.96 ea |
SAE C - 14T 12/24-30° pa Flat Root Side Fit External Spline Insert | 1 | TIS059 | $68.96 ea | $56.16 ea | $50.96 ea |
19T 20/40-30° pa Flat Root Side Fit External Spline Insert | 1 | TIS049 | Pricing on request | ||
48T 10/20-30° pa Flat Root Side Fit External Spline Insert | 2 | TIS068 | $94.75 ea | $81.95 ea | $75.35 ea |
22T 16/32-30° pa Flat Root Side Fit External Spline Insert | 1 | TIS076 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Fillet Root External Spline Inserts - Inch
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
18T 32/64-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS052 | $68.96 ea | $56.16 ea | $50.96 ea |
30T 48/96-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS054 | Pricing on request | ||
14T 32/64-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS055 | Pricing on request | ||
11T 16/32-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS061 | Pricing on request | ||
30T 32/64-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS066 | Pricing on request | ||
16T 24/48-30° pa Fillet Root Side Fit External Spline Insert | 1 | TIS067 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Other External Spline Inserts
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
Comer Brake Disc External Spline Insert | 1 | TIS051 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Inch Internal Keyway Insert
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
1/8" Square Keyway Insert (recommended with shank T6S001) | 1 | TISKI1 | $68.96 ea | $56.16 ea | $50.96 ea |
5/32" Square Keyway Insert (recommended with shank T6S006) | 1 | TISKI2 | $68.96 ea | $56.16 ea | $50.96 ea |
3/16" Square Keyway Insert (recommended with shank T6S006) | 1 | TISKI3 | $68.96 ea | $56.16 ea | $50.96 ea |
1/4" Square Keyway Insert (recommended with shank T6S002, T6S003, or T6S007) | 1w | TISKI4 | $68.96 ea | $56.16 ea | $50.96 ea |
5/16" Square Keyway Insert | 2 | TISKI5 | $94.75 ea | $81.95 ea | $75.35 ea |
3/8" Square Keyway Insert | 2w | TISKI6 | $94.75 ea | $81.95 ea | $75.35 ea |
9/32" Square Keyway Insert | 2 | TISKI7 | $94.75 ea | $81.95 ea | $75.35 ea |
3/4" Square Keyway Insert | 3 | TISKI8 | Pricing on request | ||
1/2" Square Keyway Insert | 2xw | TISKI9 | $113.07 ea | $100.27 ea | $93.67 ea |
Click here to go to top of page
Metric Internal Keyway Insert
Description | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
3mm Square Keyway Insert | 1 | TISKM6 | $68.96 ea | $56.16 ea | $50.96 ea |
4mm Square Keyway Insert (recommended with shank T6S001) | 1 | TISKM1 | $68.96 ea | $56.16 ea | $50.96 ea |
5mm Square Keyway Insert (recommended with shank T6S001 or T6S006) | 1w | TISKM2 | $68.96 ea | $56.16 ea | $50.96 ea |
6mm Square Keyway Insert (recommended with shank T6S002) | 1w | TISKM3 | $68.96 ea | $56.16 ea | $50.96 ea |
8mm x 7mm Keyway Insert | 2 | TISKM4 | $94.75 ea | $81.95 ea | $75.35 ea |
10mm x 7mm Keyway Insert | 2 | TISKM5 | $94.75 ea | $81.95 ea | $75.35 ea |
9.96mm (.392") x 4mm Keyway Insert | 2w | TISKM7 | $94.75 ea | $81.95 ea | $75.35 ea |
Click here to go to top of page
Other Shaped Inserts
Descripton | Size | Part No. | 2 pc | 4-6 pc | 7+ pc |
---|---|---|---|---|---|
Square Corner, 1/2" sq min., use 1/8" endmill to extend flats when used with T6S001 shank | 1 | TIS033 | $68.96 ea | $56.16 ea | $50.96 ea |
Hex Corner, 0.108 long flat, 1/2" min. hex, use 3/16" endmill to extend flats | 1 | TIS034 | $68.96 ea | $56.16 ea | $50.96 ea |
Click here to go to top of page
Shaper Cutting Insert Holder Shanks

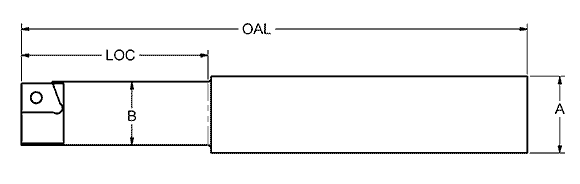

Shanks are application specific based on minor diameter(B) and length of cut(LOC). Please contact us if you have any questions
Part No. | Description | Size | OAL | LOC | A | B | Price |
---|---|---|---|---|---|---|---|

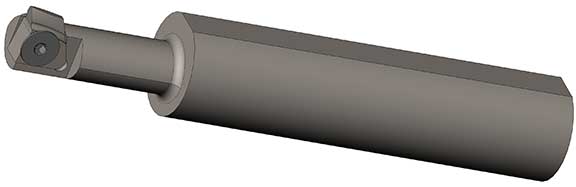

T6S001 | A1 Shaper Cutting Shank | 1 | 4.2" | 1" | 3/4" Dia. | .45" Dia. | $70 ea |

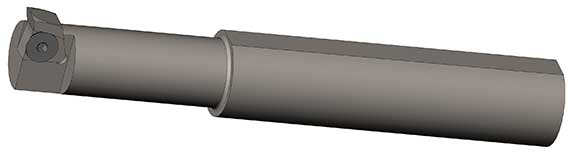

T6S002 | B1 x 3/4 Shaper Cutting Shank | 1 | 4.8" | 1.7" | 3/4" Dia. | .6" Dia. | $70 ea |

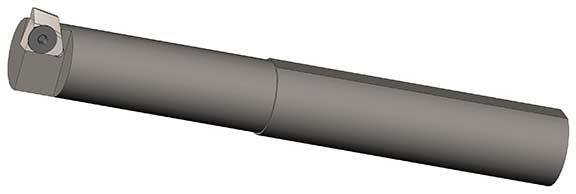

T6S003 | C1 x 3/4 Shaper Cutting Shank | 1 | 5.5" | 2.4" | 3/4" Dia. | .71" Dia. | $70 ea |

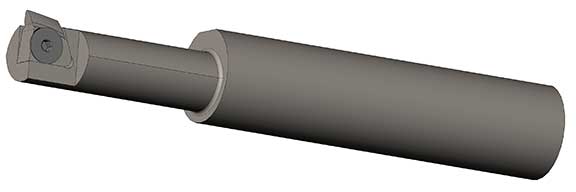

T6S006 | K2 Shaper Cutting Shank | 1 | 4.6" | 1.55" | 3/4" Dia. | .58" Dia. | $70 ea |

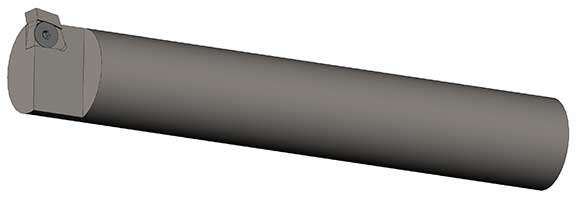

T6S007 | Shaper Cutting Shank | 1 | 6" | 1.8" | 1" Dia. | .49" Dia. | $70 ea |
T6S009 | Shaper Cutting Shank | 2 | 6.5" | 1.8" | 1-1/2" Dia. | .72" Dia. | $92 ea |
T6S010 | Shaper Cutting Shank | 2 | 6" | 3" | 1" Dia. | 1" Dia. | $92 ea |
T6S011 | Shaper Cutting Shank | 2 | 9" | 4.5" | 1-1/2" Dia. | 1.5" Dia. | $92 ea |
T6S016 | Shaper Cutting Shank | 2 | 5.9" | 3.8" | 1-1/2" Dia. | 1.5" Dia. | $92 ea |
