6,000 psi Long Stroke Cylinders
Back to the 6,000 psi Cylinder main page
Click here for a print-friendly PDF of this page
These long stroke 6,000 psi working pressure cylinders are designed for excavator boom and thumb applications, and other severe use high pressure applications.

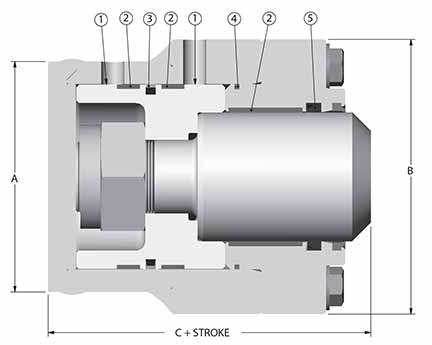

Design features for extending operating life:
- Port closing cushion reduces impact at end of retract stroke.
- Step cut wear rings act as pressure buff ers as well as bearings.
- Step Lock piston seal provides the longest seal life when pressures exceed 7,000 psi.
- Urethane U-Seal between the head and barrel extend operating life over an O-Ring and back up ring.
- A Hallite 621 U-Seal with anti-extrusion ring provides for excellent rod seal life.
Quick Ship Sizes
| Bore Dia. | Rod Dia. | Max. Stroke | Max. Extend Force | Max. Retract Force | A | B | C |
|---|---|---|---|---|---|---|---|
| 4.025 | 2.750 | 42" | 191,000 lbs | 115,000 lbs | 5.00" | 5.95" | 7.12" |
| 5.025 | 3.500 | 48" | 248,000 lbs | 210,000 lbs | 6.25" | 7.45" | 8.75" |
| 6.025 | 4.000 | 60" | 427,900 lbs | 330,000 lbs | 7.25" | 8.90" | 10.03" |
Quick ship sizes built to fi t your application have short lead times, 3", 3-1/2", 4-1/2", 5-1/2", 6", 6-1/2", 7", 8", and 9" bore sizes are available in 4 to 6 weeks. Other sizes can be manufactured per request.
This information is subject to change without notice or obligation.
For more information call 360-264-2141.
