Other Manifolds

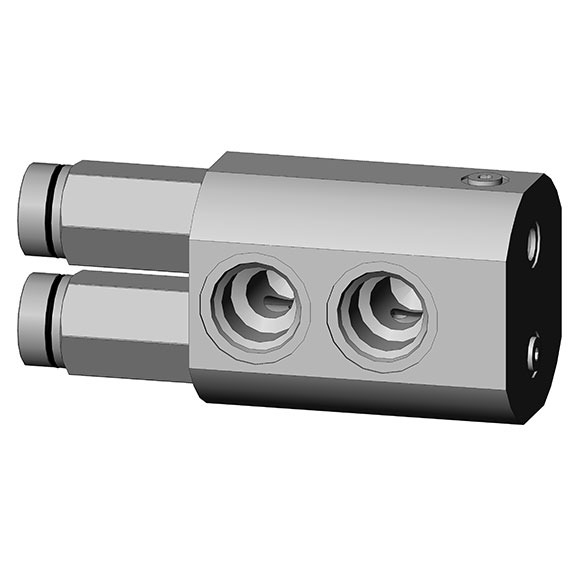

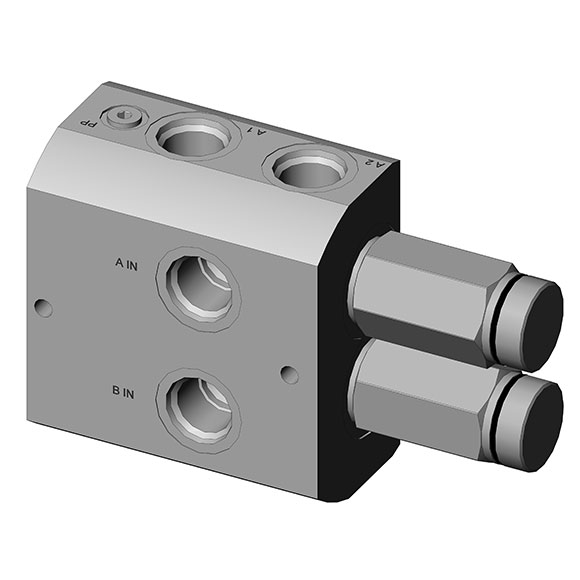

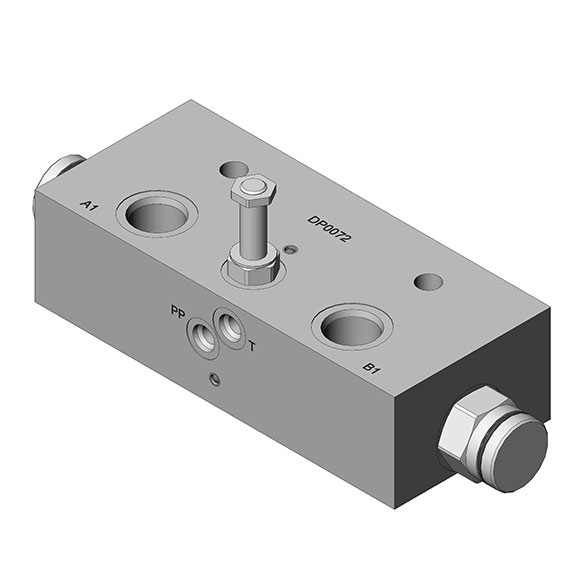

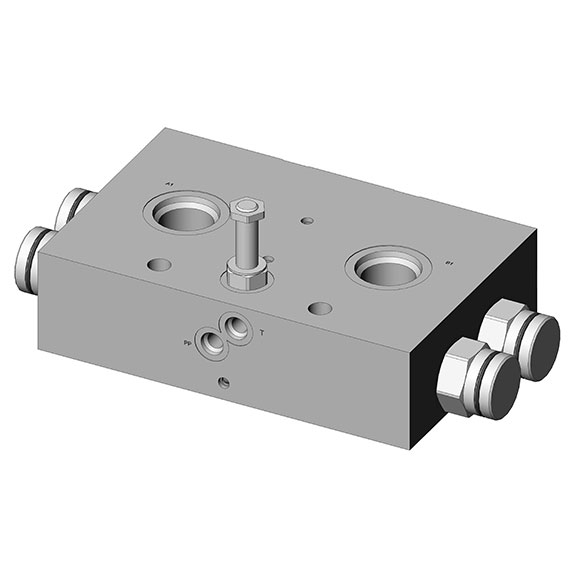

We make manifolds to divert one or two input flows to create an auxiliary circuit to operate new attachments for your machine. DP0007 is a single input flow manifold, DP0031, DP0073 & DP0082 are double input flow manifolds.

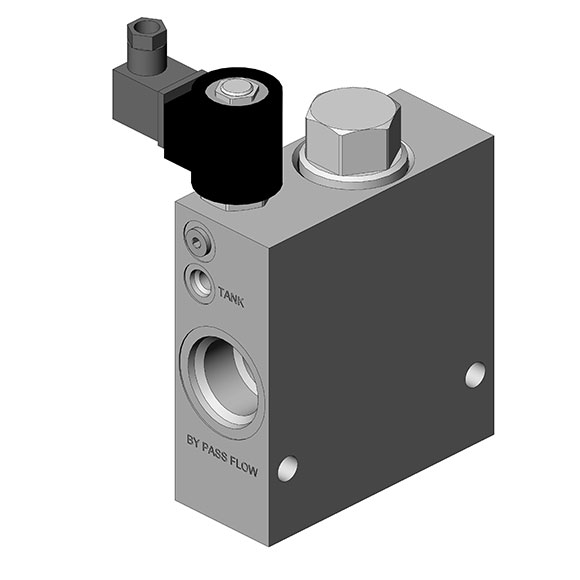

The DP0033 is a vented flow divider manifold that can be used to create a defined flow rate priority auxiliary circuit on mobile equipment.

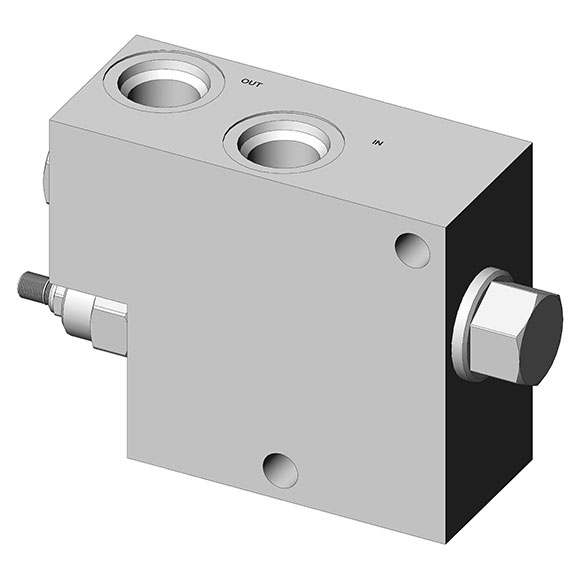

The DP0084 is designed to limit the flow, flow direction, and pressure to protect hydraulic compactors or hydraulic hammers when attaching them to a machine with unknown flows.
The DP0088 is designed to use two pumps to create a two stage wood splitter pump. This manifold can be used to make a high flow low pressure pump that will shift to become a high pressure low flow pump for other applications from two pumps.
The DP0090 is a pilot operated dump valve rated for 10 GPM. This manifold can be used to dump excess flow coming out of the blind end of a hydraulic cylinder when the pump flow is close to the valve flow rating. This manifold is frequently use in hydraulic wood splitters.
Click on a picture below for a larger view. Click on a part number to view the PDF.
